| MANUFACTURER | MIKROTIK |
|---|---|
| MODEL | C52iG-5HaxD2HaxD-TC |
| INPUT CONNECTORS | 5 PORT 10/100/1000 (1 PoE) |
| CPU (Processor) | IPQ-6010 - 864 Mhz |
| RAM | 1GB |
| HDD/SSD | 128 MB |
| NETWORK CONNECTIONS | 802.11a/n/ac/ax - 2.4/5 Ghz |
|---|---|
| OS | RouterOS v7 license 4 |
| PURPOSE | Wireless Routers |
| CONDITION | НОВО |
| WARRANTY | 12 Мonths |

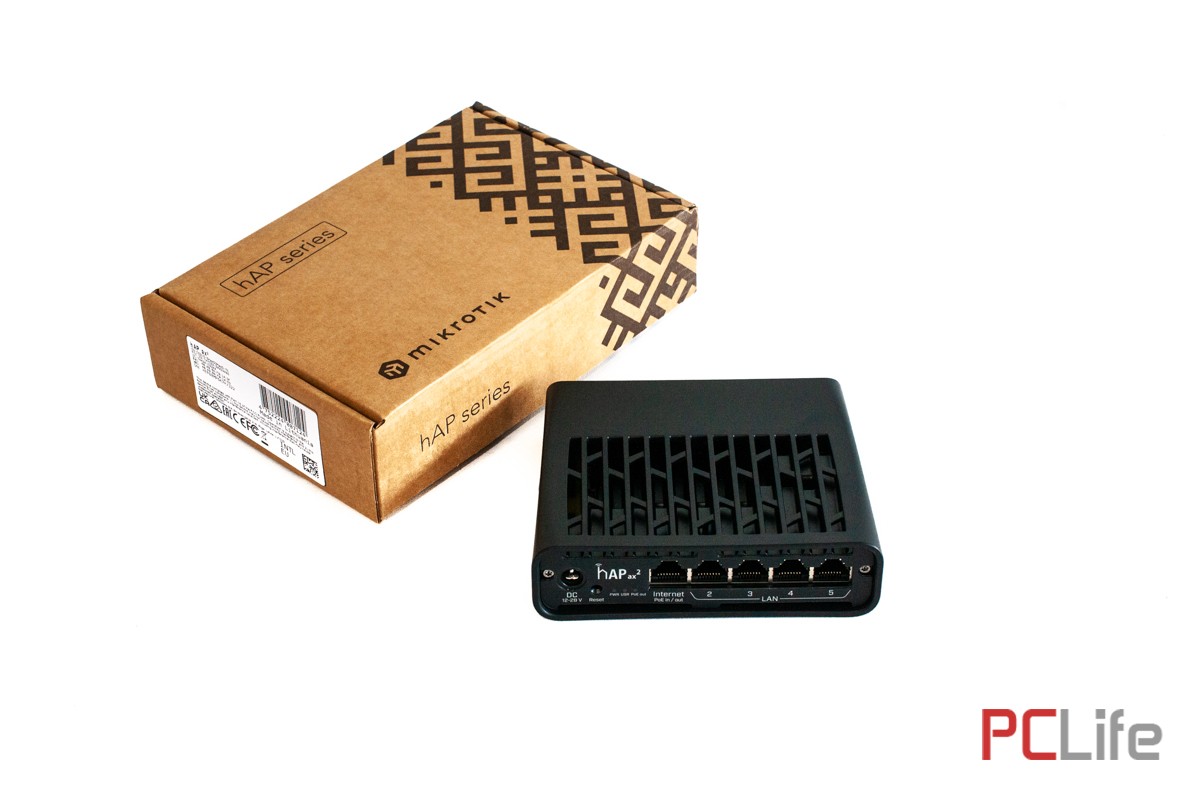

hAP ax²
Безжичната мрежа от от поколение 6 на легендарния hAP ac². С PoE вход и PoE изход, много по-бърза безжична връзка, повече RAM и модерен процесор. Най-малкият пълноценен AX рутер на пазара!
Рутер MikroTik C52IG-5HAXD2HAXD-TC hAP ax2 - идеалното устройство за 99% от домовете.
Specifications
Wireless capabilities
|
Details |
|
|---|---|
|
Wireless 2.4 GHz Max data rate |
574 Mbit/s |
|
Wireless 2.4 GHz number of chains |
2 |
|
Wireless 2.4 GHz standards |
802.11b/g/n/ax |
|
Antenna gain dBi for 2.4 GHz |
4 |
|
Wireless 2.4 GHz chip model |
QCN-5022 |
|
Wireless 2.4 GHz generation |
Wi-Fi 6 |
|
Wireless 5 GHz Max data rate |
1200 Mbit/s |
|
Wireless 5 GHz number of chains |
2 |
|
Wireless 5 GHz standards |
802.11a/n/ac/ax |
|
Antenna gain dBi for 5 GHz |
4.5 |
|
Wireless 5 GHz chip model |
QCN-5052 |
|
Wireless 5 GHz generation |
Wi-Fi 6 |
|
WiFi speed |
AX1800 |
Ethernet
|
Details |
|
|---|---|
|
10/100/1000 Ethernet ports |
5 |
|
Number of 1G Ethernet ports with PoE-out |
1 |
Powering
|
Details |
|
|---|---|
|
Number of DC inputs |
2 (DC jack, PoE-IN) |
|
DC jack input Voltage |
12-28 V |
|
Max power consumption |
27 W |
|
Max power consumption without attachments |
12 W |
|
Cooling type |
Passive |
|
PoE in |
Passive PoE |
|
PoE in input Voltage |
18-28 V |
PoE-out
|
Details |
|
|---|---|
|
PoE-out ports |
Ether 1 |
|
PoE out |
Passive PoE |
|
Max out per port output (input 18-30 V) |
600 mA |
|
Max total out (A) |
0.6 A |
|
Total output current |
0.6 |
|
Total output power |
16.8W |
Certification & Approvals
|
Details |
|
|---|---|
|
Certification |
CE, FCC, IC, EAC, ROHS |
|
IP |
20 |
Other
|
Details |
|
|---|---|
|
CPU temperature monitor |
Yes |
|
Mode button |
Yes |
Wireless specifications
|
2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
|---|---|---|
|
1MBit/s |
27 |
-100 |
|
11MBit/s |
27 |
-94 |
|
6MBit/s |
27 |
-96 |
|
54MBit/s |
25 |
-80 |
|
MCS0 |
27 |
-96 |
|
MCS7 |
24 |
-75 |
|
MCS9 |
22 |
-70 |
|
MCS11 |
20 |
-67 |
|
5 GHz |
Transmit (dBm) |
Receive Sensitivity |
|---|---|---|
|
6MBit/s |
26 |
-96 |
|
54MBit/s |
23 |
-80 |
|
MCS0 |
26 |
-96 |
|
MCS7 |
22 |
-75 |
|
MCS9 |
20 |
-70 |
|
MCS11 |
18 |
-67 |
